6469028-1
Connector, Z-PACK Series, 40 Contacts, 2 mm, Receptacle, Press Fit, 4 Rows

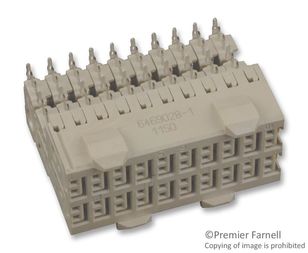

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, PC Board, Backplane Connectors
Avnet Manufacturer Part #: 6469028-1
Secondary Manufacturer Part#: 6469028-1
-
RoHS 10 Compliant -
Tariff Charges
The 6469028-1 is a 40-position 4-row 10-column shielded right angle female hard metric Backplane Connector with gold-plated copper-nickel-silicon contacts and grey GF polyester housing. The receptacle supports press-fit termination method?and HM-Zd interface. Polarization mating alignment type connector is applicable to?printed circuit board.
- =12Gbps Data rate
- With grounding contact
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Right Angle | ||
| Copper-Nickel-Silicon | ||
| Gold | ||
| Receptacle | ||
| Through Hole | ||
| Press Fit |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
