641300-2
Contact, Socket, Crimp / Solder, 18 AWG, Gold Plated Contacts, Miniature Rectangular Connectors
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 641300-2
Secondary Manufacturer Part#: 50F675
-
RoHS 10 Compliant -
Tariff Charges

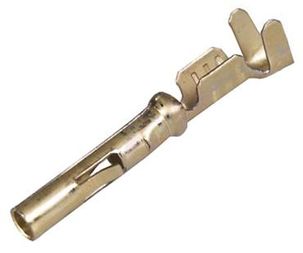

The 641300-2 is a crimp Socket Contact with phosphor bronze body, gold-plating. 26 to 18AWG wire. This crimp socket contact is suitable for use with miniature rectangular connectors.
- 250VAC Operating voltage
- 9A Contact current rating
- 0.76µm Contact mating area plating thickness
- 25-cycle Durability (mating and unmating)
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| Phosphor Bronze | ||
| Gold | ||
| Receptacle | ||
| Cable Mount | ||
| 16.76 x 3.68 x 3.48 mm | ||
| No | ||
| Crimp | ||
| 12 to 8, 12 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536904000 |
Factory Lead Time:
