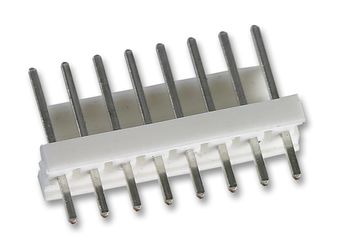

640456-8
Pin Header, Wire-to-Board, 2.54 mm, 1 Rows, 8 Contacts, Through Hole Straight, MTA-100 Series
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, PC Board Connectors, Wire to Board Connectors
Avnet Manufacturer Part #: 640456-8
Secondary Manufacturer Part#: 640456-8
-
RoHS 10 Compliant -
Tariff Charges
The 640456-8 is a 8-position 1-row unshrouded Friction Lock Header with pin type tin-plated copper alloy straight posts, UL94V-0-rated glass-filled polyester housing and nickel-plated underplate. This vertical header is suitable for use with MTA-100 connector assembly.
- 250VAC Operating voltage
- 5A Contact current rating
- UL94V-0 Flammability rating
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Thermoplastic Polyester | ||
| Straight | ||
| Copper Alloy | ||
| Matte Tin Over Nickel | ||
| Header | ||
| Natural | ||
| Matte Tin Over Nickel | ||
| 265 | ||
| 10 mOhm | ||
| 5 A | ||
| Through Hole | ||
| 8 | ||
| 1 | ||
| -55 to 105 to 105 °C | ||
| 2.54 mm | ||
| 5.72 mm | ||
| 20.32 x 5.72 x 10.03 mm | ||
| 10.03 mm | ||
| 20.32 mm | ||
| 640456 | ||
| Solder | ||
| Partial Shrouded |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Factory Lead Time:
