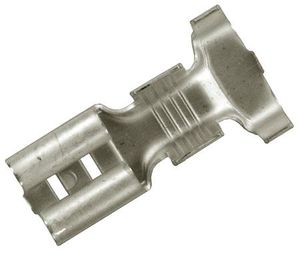

62998-2
Quick Disconnect Terminal 8-10AWG RCP 19.69mm 10.67mm Tin Strip
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Terminals, Quick Disconnect Terminals
Avnet Manufacturer Part #: 62998-2
Secondary Manufacturer Part#: 62998-2
-
RoHS 10 Compliant -
Tariff Charges
- Full line of premier, budget, LIF, moldable and hermetic uninsulated receptacles
- Straight, right-angle and receptacle and tab combinations available
- Receptacles available in .250 sizes
- Style : A
- Available in 10-8 AWG wire ranges
- Insulation Diameter : .230 - .280, 5.84 - 7.11
- Receptacles mate with .032 thick tabs
- Available with or without secondary wire support
- Base materials brass, phosphor bronze and steel available
- Tin, silver and nickel plated products available
- Products designed and manufactured to meet UL 310 specifications
- Products designed and manufactured to meet CSA C22.2 specifications
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Brass | ||
| Tin | ||
| Tin | ||
| 10.67 mm | ||
| 19.69 x 10.67 mm | ||
| 19.69 mm | ||
| 5.16 mm² | ||
| 10 to 8, 10 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536904000 |
Factory Lead Time:
