6-87756-7

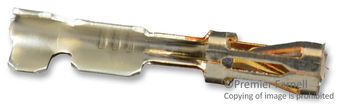

Contact, AMPMODU Mod IV, Socket, Crimp, 22 AWG, Gold Plated Contacts
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 6-87756-7
Secondary Manufacturer Part#: 52K3819
-
RoHS 10 Compliant -
Tariff Charges
The 6-87756-7 is a socket Crimp Contact made of copper-tin-phosphor bronze (Cu-Sn-Ph Bz) with gold plated finish. The standard pressure contact with insulation support. It accepts 26 to 22AWG wire size. This contact is suitable for AMPMODU Mod IV receptacle housing.
- 12mO Termination resistance
- 250VAC Operating voltage
- 750V Dielectric withstanding voltage
- 5000MO Insulation resistance
- 3A Contact current rating
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| 0.12 to 0.4 mm² | ||
| Wire to Board Housing | ||
| Copper-Tin|Phosphor Bronze | ||
| Gold | ||
| Power|Signal | ||
| Receptacle | ||
| Tin Over Nickel | ||
| 12 mOhm | ||
| 3 A | ||
| Cable Mount | ||
| -65 to 105 °C | ||
| 0.76 um | ||
| 11.3 x 2.03 mm mm | ||
| AMPMODU | ||
| No | ||
| Crimp | ||
| 26 to 22, 26 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538903000 |
| Schedule B: | 8538907040 |
Factory Lead Time:
