5650947-5

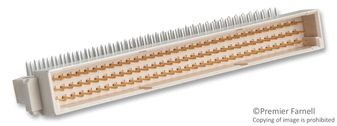

DIN 41612 Connector, Eurocard, 96 Contacts, Plug, 2.54 mm, 3 Row, a + b + c
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Backplane Connectors
Avnet Manufacturer Part #: 5650947-5
Secondary Manufacturer Part#: 5650947-5
-
RoHS 10 Compliant -
Tariff Charges
The 5650947-5 is a 96-position Board-to-board Right Angle Eurocard/DIN 41612 Plug Assembly with pin type gold-plated copper alloy contacts and glass-filled high temperature polymer housing. The action pin post connector features make first/break last, mounting holes PCB mount retention and polarization mating alignment type. The standard connector is designed for printed circuit board.
- UL94V-0 Flammability rating
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Polymer | ||
| Right Angle | ||
| Copper Alloy | ||
| Tin | ||
| Pin | ||
| Gray | ||
| 265 | ||
| Through Hole | ||
| 2.5400 mm | ||
| 17.73 mm | ||
| 94 x 17.73 x 11.1 mm | ||
| 11.1 mm | ||
| 94 mm | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Ships
in 1 bus. day
