536416-5

Name: 536416-5
Brand: TE Connectivity
SKU: 536416-5
Availability: InStock

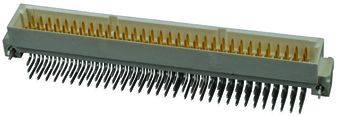

Click image to enlarge

Manufacturer:TE Connectivity

Product Category: Connectors, PC Board, DIN 41612 Connectors

Avnet Manufacturer Part #: 536416-5

Secondary Manufacturer Part#: 536416-5

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Connector Orientation	Right Angle
	Contact Material	Brass
	Contact Plating	Gold
	Gender	Plug
	Mounting	Through Hole
	Pitch Spacing	2.54 mm
	Termination Method	Solder

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8536694040
Schedule B:	8536694040

In Stock : 0

Additional inventory

Factory Lead Time: 80 Weeks

Price for: Each

Quantity:

Min:600 Mult:600

USD $:

$6.72574

1000+

$6.01642

5000+

$5.94542

10000+

$5.91508

20100+

$5.88475
