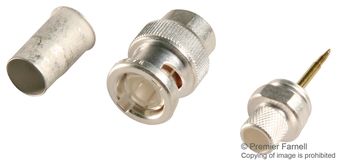

5330878

BNC RF connector family with bayonet locking coupling provides highly reliable, quick connect/disconnect coaxial connections. Exclusive single and O crimp terminations allow positive insulation grip and require no soldering, providing terminations at a very low overall applied cost.

These connectors feature numerous styles including cable plugs and jacks, adapters and printed circuit board connectors. In addition to a variety of crimp type terminations, connectors are furnished in field replaceable and twist-on styles. These connectors accept a wide range of coaxial cables and are intermateable with industry standard connectors designed to MIL-C- 39012 specifications.

All connectors are designed around the mil-specifications, but utilize low-cost materials, offering comparable mechanical and electrical performance.

• 75 Ohm
• Single crimp termination
• Bayonet lock coupling for quick connect/disconnect
• Fully intermateable with comparable BNC UG/U connectors
• Full range of Hex Crimp and O Crimp Products for common coaxial cables
• Low VSWR
• Single crimp connectors offer one crimping operation for fast application
• Twist-on connectors require no special tooling for application to the cable
• Field serviceable (Category A) connectors qualified to MIL-C-39012
• Field replaceable (Category C) plugs with captivated center contact
• Field replaceable plugs can be terminated with industry standard tooling
• Tarnish resistant Nickel finish available
• Choice of different dielectrics
• Listed under the Component Program of Underwriters Laboratories Inc., File No. E81956
• PC Board soldered connectors are recognized under the Component Program of Underwriters Laboratories Inc., File No. E81956
• Certified by
