5179029-1

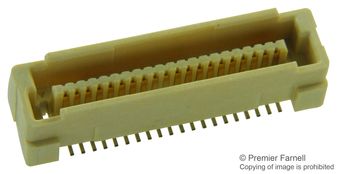

This 0.8mm FH surface-mount connectors are designed for parallel board stacking applications using subminiature connectors.

It is possible to save more than 50% of the required board space when compared to conventional 1.27 [.050] centerline connectors.

0.8mm FH connectors are ideally suited for application downsizing, such as notebook PCs, pen pads, cellular telephones and other electronic equipment requiring miniature connector packaging.

Vertical board-mount plugs and receptacles are available. By mating combinations of plug and receptacle housing heights, board-toboard stacking heights from 5 [.197] to 16 [.630] (in 1 [.039] increments) can be achieved.

The receptacles are preloaded with the unique bellows-type spring contacts for reliable electrical connection with the plugs.

In addition, right angle plugs are available which mate to standard receptacles.

• For parallel board stacking applications
• High density packaging on 0.8 [.031] centerline spacing
• Available sizes from 100 positions (in 20 position increments)
• 6mm Plugs for 6 [.236], 10 [.394] and 14 [.551] Stacking Heights
• Bellows type spring contacts are resistant to scooping and stubbing during mating and unmating
• Positioning bosses for proper on-board orientation
• Available packaged on“tape-and-reel” for automatic placement per EIA standards
• Recognized under the Component Program of Underwriter Laboratories Inc
