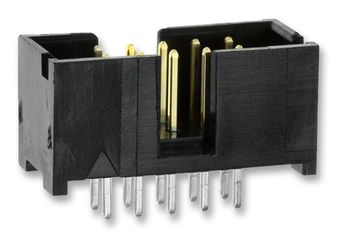

5103308-5
Pin Header, Wire-to-Board, 2.54 mm, 2 Rows, 20 Contacts, Through Hole Straight, AMP-LATCH
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, PC Board, Pin & PCB Headers
Avnet Manufacturer Part #: 5103308-5
Secondary Manufacturer Part#: 35M5125
-
RoHS 10 Compliant -
Tariff Charges
The 5103308-5 is a 20-position 2-row vertical shrouded?Wire-to-Board Low Profile Pin Header with gold flash over palladium nickel copper alloy pin contacts and black glass filled nylon/PBT 4-sided housing. This AMP-LATCH series plug supports through-hole termination method to PC board and centre, dual polarizing bar mating alignment.
- Mass termination capabilities
- No need to strip or prepare wire
- 250VAC Operating voltage
- 5000MO Insulation resistance
- 1A Contact current rating
- 15µinch Plating thickness of contact mating area
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Glass Filled LCP (Liquid Crystal Polymer)|PBT (Polybutylene Terephthalate) | ||
| Straight | ||
| Brass | ||
| Gold Flash Over Nickel Palladium | ||
| 20 | ||
| 2 | ||
| 2.54 mm | ||
| 5103308 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Factory Lead Time:
