5-747908-2
D Sub Connector, Standard, Plug, AMPLIMITE HDP-20 Series, 15 Contacts, DA, Solder Cup

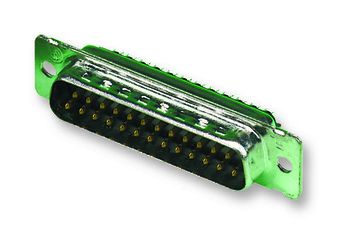

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, D-Shaped Connectors, Standard D-Sub Connectors
Avnet Manufacturer Part #: 5-747908-2
Secondary Manufacturer Part#: 5-747908-2
-
RoHS 10 Compliant -
Tariff Charges
The 5-747908-2 from TE Connectivity is an AMPLIMITE HD-20 D sub standard plug connector with grounding indents. The connector shell size is 2 with 15 pin contact.
- Tin plated steel shell
- Insert material  is thermoplastic
- Contact size is 20
- Contact base material is phosphor bronze
- Solder tail contact plating material is tin copper over nickel
- Contact mating area plating material is gold flash
- Solder cup contact configuration 
- UL94 V-0 flammability rating 
- Wire size range from 0.5mm² to 0.6mm² (20AWG)
- Mating connector lock and straight mounting angle
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| PBT (Polybutylene Terephthalate)|Steel | ||
| Straight | ||
| Brass | ||
| Gold Over Nickel | ||
| Plug | ||
| Tin-Copper | ||
| 240 | ||
| Panel Mount | ||
| 15 | ||
| 2 | ||
| -55 to 105 to 105 °C | ||
| 2.77 mm | ||
| 12.5 mm | ||
| 39.2 x 12.5 x 12.2 mm | ||
| 12.2 mm | ||
| 39.2 mm | ||
| 747908 | ||
| 2 | ||
| Solder Cup |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536698000 |
| Schedule B: | 8536698000 |
Factory Lead Time:
