42565-2
Quick Disconnect Terminal, FASTON 250, Male Quick Disconnect, 6.35mm x 0.81mm, 0.25" x 0.032"""

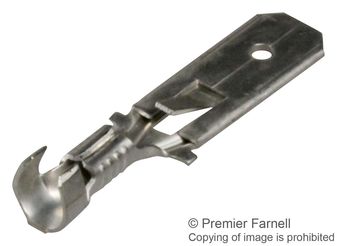

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Terminals, Quick Disconnect Terminals
Avnet Manufacturer Part #: 42565-2
Secondary Manufacturer Part#: 42565-2
-
RoHS 10 Compliant -
Tariff Charges
The 42565-2 is a Blade Terminal with tin-plated brass contact. 0.8 to 1.31mm² wire cross-section, straight orientation, male quick disconnect type, 6.35 x 0.81mm tab size and 18 to 16AWG wire size. This blade terminal is suitable for wires/cables.
- Regular wire/cable type
- Insulation wire support
- Single connection capacity
- Normal insertion force
- Designed for speed of application using selected terminating machines
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Brass | ||
| Tin | ||
| Tin | ||
| 6.48 mm | ||
| 29.14 x 6.48 mm | ||
| 29.14 mm | ||
| 5.16 mm² | ||
| 18 to 16, 18 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538908140 |
| Schedule B: | 8538907020 |
