36270

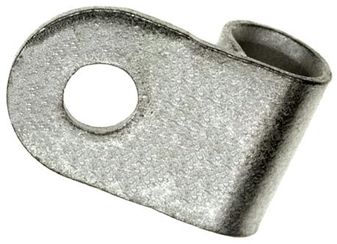

Flag Terminal 10-12AWG 17.83mm 9.53mm Tin Loose Piece
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Terminals, Ring Terminals
Avnet Manufacturer Part #: 36270
Secondary Manufacturer Part#: 36270
-
RoHS 10 Compliant -
Tariff Charges
The SOLISTRAND terminals are specially designed to terminate solid and stranded wire, irregular shaped conductors, and combinations of these - retaining the superior performance characteristics of single-purpose terminals and splices.
Corrosion resistance, vibration resistance and tensile strength of these terminals are well within the limits of commercial and military specifications.
- SOLISTRAND Flag Ring Tongue Terminal
- Stud Size: M4
- Wire Size: 12-10 AWG
- Material: Terminal Body - Copper per ASTM B-152; Plating - Tin per MIL-T-10727
- Utilize a brazed seam
- Applied with “W” crimp tooling
- For terminating solid & stranded wires
- U.L. Listed CSA Certified Military Approved
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Copper | ||
| Tin | ||
| Tin | ||
| 9.53 mm | ||
| 17.83 x 9.53 mm | ||
| 17.83 mm | ||
| 4 mm | ||
| 12 to 10, 12 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536904000 |
Factory Lead Time:
