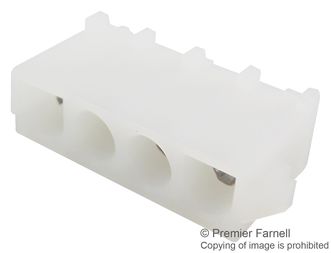

350761-4
Rectangular Power Connector, 4 Contacts, Universal MATE-N-LOK, Through Hole Mount
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Power Connectors
Avnet Manufacturer Part #: 350761-4
Secondary Manufacturer Part#: 350761-4
-
RoHS 10 Compliant -
Tariff Charges
The 350761-4 is a 4-position 1-row Wire-to-board Shrouded Header with socket type pre-tin-plated phosphor bronze contacts and natural glass-filled nylon housing. The universal MATE-N-LOK series vertical connector has polarization mating alignment, positive lock mating retention and standard tail. Mates with the plug housing (using pin contacts).
- 600VAC Operating voltage
- UL94V-2 Flammability rating
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Phosphor Bronze | ||
| Pre-Tin | ||
| Receptacle | ||
| Through Hole | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Factory Lead Time:
