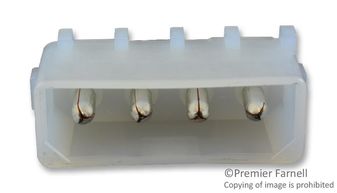

350543-1
Rectangular Power Connector, 4 Contacts, Commercial MATE-N-LOK, PCB Mount, Through Hole, 5.08 mm
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, PC Board, Pin & PCB Headers
Avnet Manufacturer Part #: 350543-1
Secondary Manufacturer Part#: 350543-1
-
RoHS 10 Compliant -
Tariff Charges
- Fully polarized nylon housings
- Easy cavity identification
- Locking devices are integral part of design; Connector halves will hold together under severe conditions of vibration and shock
- Built-in contact stabilization and self-aligning features
- Hot side egg-crate design for safety
- Precision molded to exacting tolerances
- Keying plug available
- “Clean” design contact no sharp projections to impede insertion or damage housings
- Low insertion/extraction forces
- Contacts available in Pre-Tin plated to fit the application requirements
- Wire-to-PC Board capability using pin
- Solderability-Headers meet MIL-STD 202 method 208
- Four circuit PC Board-to-PC Board capability available by mating vertical socket header with either vertical, right-angle or surface mount pin header
- Four circuit insulation displacement connector (IDC) available
- Ultraviolet (UV) stable housings available in 1,
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon | ||
| Straight | ||
| Phosphor Bronze | ||
| Pre-Tin | ||
| 5.08 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Factory Lead Time:
