350211-1
Pin Header, Vertical, Wire-to-Board, 5.08 mm, 1 Rows, 4 Contacts, Through Hole Straight
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Power Connectors
Avnet Manufacturer Part #: 350211-1
Secondary Manufacturer Part#: 350211-1
-
RoHS 10 Compliant -
Tariff Charges

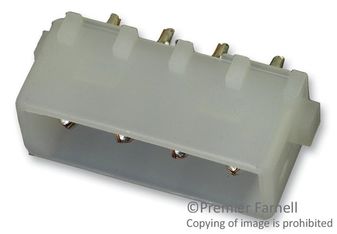

The 350211-1 from TE Connectivity is a Commercial MATE-N- LOK header assembly. It is a 5.08mm pitch, single row 4 position header assembly.
- Natural colour nylon GF housing
- Current rating is 12A
- Operating voltage?is 250VAC
- Phosphor bronze with tin plated contacts
- Operating temperature range from -55°C to 105°C
- Available with detent lock
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Phosphor Bronze | ||
| Pre-Tin | ||
| Header | ||
| Through Hole | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Factory Lead Time:
