323676
Ring Tongue Terminal 14-16AWG 20.65mm 6.35mm Tin Loose Piece

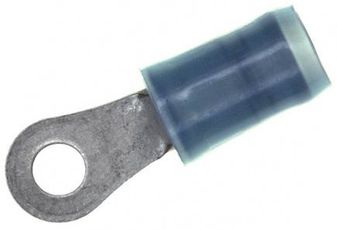

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Terminals, Ring Terminals
Avnet Manufacturer Part #: 323676
Secondary Manufacturer Part#: 323676
-
RoHS 10 Compliant -
Tariff Charges
- PIDG (Pre-Insulated DIAMOND GRIP) ring tongue terminal
- Pre-insulated terminal designed for uniform reliability in most difficult circuit environments
- Design of the tool dies and construction of the terminal allows for uniform insulation thickness under crimping pressure, transmitting this pressure evenly to the center of the crimp area
- Nylon sleeve has high dielectric strength
- Blue terminal insulation
- Wire Size: 16-14 AWG
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Copper | ||
| Tin | ||
| Tin | ||
| 6.35 mm | ||
| 20.65 x 6.35 mm | ||
| 20.65 mm | ||
| 2.84 mm | ||
| 16 to 14, 16 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536904000 |
Factory Lead Time:
