320568

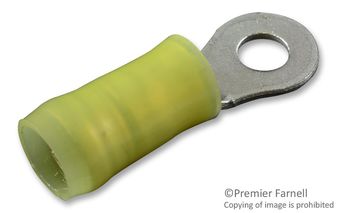

Ring Tongue Terminal, M4, #8, 10 AWG, 6 mm², PIDG, Yellow
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Terminals, Ring Terminals
Avnet Manufacturer Part #: 320568
Secondary Manufacturer Part#: 320568
-
RoHS 10 Compliant -
Tariff Charges
The 320568 is a Crimp Terminal with yellow nylon (polyamide) insulator, tin-plated copper body and pre-insulated insulator. 3 to 6mm² wire cross-section, straight orientation, M4 stud size, closed yellow barrel and 12 to 10AWG wire size.
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Copper | ||
| Yellow | ||
| Tin | ||
| Tin | ||
| 9.53 mm | ||
| 27.51 x 9.53 mm | ||
| 27.51 mm | ||
| 4.16 mm | ||
| 12 to 10, 12 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536904000 |
Ships
in 1 bus. day
