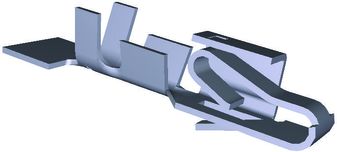

3-770476-1
Contact, SL-156, Socket, Crimp, 18 AWG, Tin Plated Contacts, SL-156 Housing
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 3-770476-1
Secondary Manufacturer Part#: 52K4382
-
RoHS 10 Compliant -
Tariff Charges
The 3-770476-1 is a 24 to 18AWG Hooded Standard Socket Crimp Contact made of phosphor bronze base material with tin-plating on contact mating area. It is used with SL-156 housings for MTA SL-156 series connectors.
- 10A Contact current rating
- 250VAC Operating voltage
- -25 to 105°C Operating temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| 0.2 to 0.9 mm² | ||
| Wire to Board Housing | ||
| Phosphor Bronze | ||
| Matte Tin Over Nickel | ||
| Signal | ||
| Socket | ||
| Matte Tin Over Nickel | ||
| 20 mOhm | ||
| 10 A | ||
| Cable Mount | ||
| -55 to 105 to 105 °C | ||
| 3.94 x 3.68 mm | ||
| 770476 | ||
| No | ||
| Crimp | ||
| 24 to 18, 24 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | PROJECTED FEE |
| ECCN: | EAR99 |
| HTSN: | 8538908140 |
| Schedule B: | 8538907040 |
Factory Lead Time:
