3-5353652-6
Conn Stacking PL 440 Position 8mm Stack Height 0.5mm Solder Straight SMD Tray

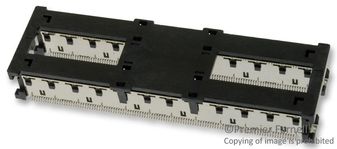

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, PC Board Connectors, Stacking Board Connectors
Avnet Manufacturer Part #: 3-5353652-6
Secondary Manufacturer Part#: 3-5353652-6
-
RoHS 10 Compliant -
Tariff Charges
3-5353652-6 is a PCB mount header.
- 440 number of positions, vertical PCB mount orientation?
- 50VDC operating voltage, 2Mohm insulation resistance
- Maximum dielectric withstanding voltage is 200VAC
- Black primary product colour, copper alloy contact base material
- Gold contact mating area plating material
- Maximum contact current rating is 0.5A
- Centreline (pitch) is 0.5mm?(0.02inch), connector height is 8mm?(0.314inch)
- High housing temperature rating, signal circuit application, UL 94V-0 rating
- Operating temperature range from -40 to 85°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| Copper Alloy | ||
| Gold Over Nickel | ||
| Solder | ||
| Plug | ||
| Surface Mount | ||
| 440 | ||
| 2 | ||
| 0.5 mm | ||
| 5353652 | ||
| 8 mm | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Ships
in 1 bus. day
