3-520276-2

Name: 3-520276-2
Brand: TE Connectivity
SKU: 3-520276-2
Availability: InStock

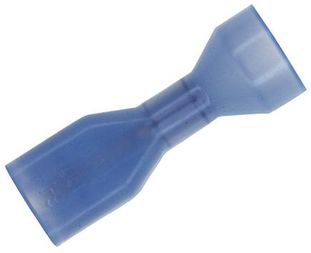

Quick Disconnect Terminal 14-16AWG RCP 23.75mm 8.53mm Tin Strip

Click image to enlarge

Manufacturer:TE Connectivity

Product Category: Connectors, Connector Terminals, Quick Disconnect Terminals

Avnet Manufacturer Part #: 3-520276-2

Secondary Manufacturer Part#: 3-520276-2

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Body Material	Brass
	Lead Finish	Tin
	Plating	Tin
	Product Depth	8.53 mm
	Product Dimensions	23.75 x 8.53 mm
	Product Length	23.75 mm
	Tab Size	3.86 mm²
	Wire Size	16 to 14, 16 AWG

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	NO RECOVERY FEE
ECCN:	EAR99
HTSN:	8536904000
Schedule B:	8536904000

In Stock : 0

Additional inventory

Factory Lead Time: 56 Weeks

Price for: Each

Quantity:

Min:2000 Mult:2000

USD $:

2000+

$0.17778

4000+

$0.1737

8000+

$0.1696

12000+

$0.16563

16000+

$0.16202
