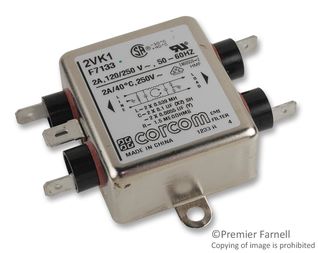

2VK1
Power Line Filter 50/60Hz 2A 250VAC Quick Connect Flange Mount
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Filters, Power Line Filters
Avnet Manufacturer Part #: 2VK1
Secondary Manufacturer Part#: 6609028-3
-
RoHS 10 Compliant -
Tariff Charges
2VK1 is a general purpose RFI power line filter ideal for high impedance load. Well suited to applications where pulsed, continuous and/or intermittent RFI interference is present.
- 2A current rating
- 0.250 [6.3] spade terminals
- Maximum leakage current each Line to Ground is 0.5mA at 120VAC 60Hz
- Hipot rating (one minute) line to ground is 2250VDC
- Rated voltage (max) of 250VAC
- Operating ambient temperature range (at rated current Ir): -10°C to +40°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 2 A | ||
| Flange Mount | ||
| 50|60 Hz | ||
| -10 to 40 °C | ||
| 71.4 x 78.7 x 23.1 mm mm | ||
| Commercial | ||
| K | ||
| Quick Connect | ||
| RFI Power Line Filter | ||
| 250 Vac |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504508000 |
| Schedule B: | 8504500000 |
Ships
in 1 bus. day
