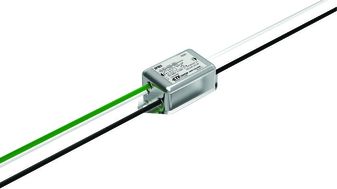

2FB3
Power Line Filter 50Hz/60Hz 2A 277VAC/277VDC Wire Lead Flange Mount
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Filters, Power Line Filters
Avnet Manufacturer Part #: 2FB3
Secondary Manufacturer Part#: 2FB3
-
RoHS 10 Compliant -
Tariff Charges
The FB Series power line filters are specially designed for lighting devices, fluorescent lamp and related lighting ballasts but are also suitable for applications requiring 277 VAC or 277 VDC. The compact size of this filter allows installation in most standard lighting tracks. Current ratings range from .5A to 5A. The new FB Series offers good attenuation in the range of 100kHz to 30MHz. These products are UL listed to UL 935, the industry standard for florescent ballasts.
- Compact size
- 277 VAC/VDC
- Strong differential mode performance
- Solid lead wires
- Ambient temperature 50°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Flange Mount | ||
| 50, 60 Hz | ||
| -10 to 50 °C | ||
| 76.2 mm | ||
| 36.07 x 76.2 x 22.23 mm | ||
| 22.23 mm | ||
| 36.07 mm | ||
| No | ||
| Wire Lead |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8548000000 |
| Schedule B: | 8548001000 |
Factory Lead Time:
