292230-3

Name: 292230-3
Brand: TE Connectivity
SKU: 292230-3
Availability: InStock

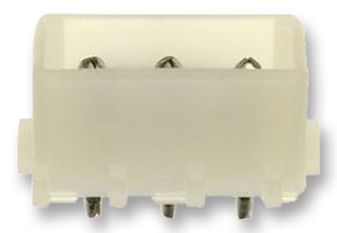

Conn Shrouded Header HDR 3 POS 1.5mm Solder ST SMD T/R

Click image to enlarge

Manufacturer:TE Connectivity

Product Category: Connectors, PC Board Connectors, Wire to Board Connectors

Avnet Manufacturer Part #: 292230-3

Secondary Manufacturer Part#: 292230-3

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Connector Body Material	Nylon
	Connector Orientation	Straight
	Contact Material	Brass
	Contact Plating	Tin
	Gender	Header
	Mounting	Surface Mount
	Pitch Spacing	1.5 mm
	Termination Method	Solder

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8536694040
Schedule B:	8536694040

In Stock : 20500.0

Ships in 1 bus. day

Additional inventory

Factory Lead Time: 55 Weeks

Price for: Each

Quantity:

Min:500 Mult:500

USD $:

500+

$0.30875

25000+

$0.26595

50000+

$0.2646

100000+

$0.26325

250000+

$0.2619
