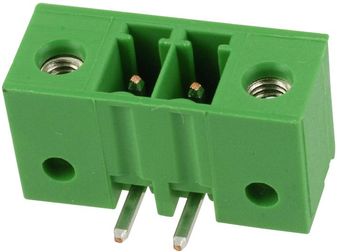

284539-2

Terminal Block connectors feature the special rising cage clamp design. The modular design of Terminal Block connectors consists of one-piece board mount terminal blocks and plug connectors with mating straight and right-angle shrouded headers.

Terminal Block connectors are interchangeable with most existing products and PC board footprint is fully compatible with existing Industry Standards.

Terminal Block connectors offer several advantages: IR Reflow compatible; Terminal Block connectors have a rising cage clamp which promotes numerous reliable connections and disconnections at field installations; The double captive screw system guards against lost screws; All metal parts are nonmagnetic; The housing funnel entry design enables an easier product application; The open bottom design facilitates the PC board washing and reduces trapping of soldering fumes and dirt, with better insulation; Contacts are post tinplated with nickel underplate which allows the product to be used in specially corrosive environments.

• Closed End Header with Threaded Flange
• 3.5 mm Centerline
• Green color
• Double-sided female contact design
• Built-in interlocks to assemble higher number of ways
• Retention latches between plug and header
• Polarization keys for easier mating
• Interchangeable with existing products of most terminal block suppliers
• PC board footprint fully compatible with existing Industry Standards: PC board thickness 1.6 to 2.4 mm
• Rising cage clamp design
• Double-sided contact spring
• Captive screw
• Plugs supplied with open screw
