282191-1
Connector Housing, JPT, Receptacle, 3 Ways, 5 mm, Junior Power Timer socket contacts
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 282191-1
Secondary Manufacturer Part#: 23T9792
-
RoHS 10 Compliant -
Tariff Charges

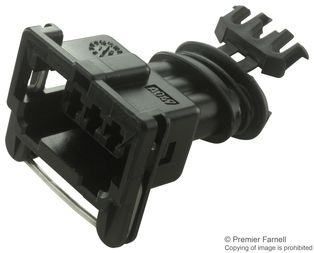

The 282191-1 is a 3-way 1-row Timer Receptacle with 5mm pitch spacing,180° cable exit and PA body. This timer receptacle is suitable for use with junior power timer socket contacts.
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Polyamide 66 | ||
| Straight | ||
| Receptacle | ||
| Black | ||
| 20 A | ||
| Cable Mount | ||
| 3 | ||
| 1 | ||
| -30 to 125 °C | ||
| 5.0000 mm | ||
| 38.2 mm | ||
| 30.4 x 38.2 x 24.5 mm mm | ||
| 24.5 mm | ||
| 30.4 mm | ||
| 282191 | ||
| Sealed | ||
| 24 Vdc | ||
| 26 to 5 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538906000 |
| Schedule B: | 8538907080 |
Factory Lead Time:
