282109-1
Contact, SUPERSEAL 1.5, Pin, Crimp, 15 AWG, Tin Plated Contacts, Superseal 1.5 Series Connectors

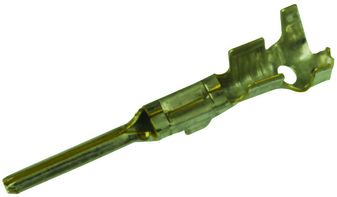

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 282109-1
Secondary Manufacturer Part#: 282109-1
-
RoHS 10 Compliant -
Tariff Charges
The 282109-1 is a Mini Mic pin/tab F-crimp Contact made of brass with tin plated finish. It accepts 17 to 15AWG wire size. The sealed contact is suitable for Super-Seal 1.5 series connectors.
- Copper wire
- 14A Typical current rating
- -40 to 125°C Operating temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| 0.75 to 1.5 mm² | ||
| Wire to Wire Housing | ||
| Brass | ||
| Pre-Tin | ||
| Power | ||
| Pin | ||
| Tin | ||
| 3 mOhm | ||
| 14 A | ||
| Cable Mount | ||
| -40 to 125 °C | ||
| 22.7 x 5.2 x 4.7 mm mm | ||
| 282109 Series | ||
| No | ||
| Crimp | ||
| 18 to 15 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536904000 |
Factory Lead Time:
