282106-1
Connector Housing, SUPERSEAL 1.5, Plug, 4 Ways, 6 mm, Superseal 1.5 Series Mini-Mic Tab Contacts
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 282106-1
Secondary Manufacturer Part#: 282106-1
-
RoHS 10 Compliant -
Tariff Charges

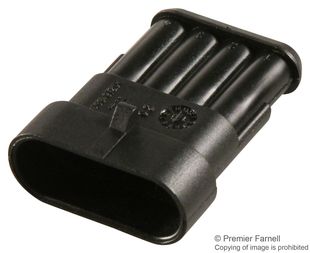

The 282106-1 from TE Connectivity is an AMP Superseal 1.5mm series tab housing for male terminals. It is a sealed 4 position black colour housing with pitch spacing of 6mm.
- Housing material is polyamide 66
- Integrated with locking feature
- Single row housing suitable with mating tab width of 1.5mm
- Suitable for wire to wire connector system
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Polyamide 66 | ||
| Straight | ||
| Plug | ||
| Black | ||
| 14 A | ||
| Cable Mount | ||
| 4 | ||
| 1 | ||
| -40 to 125 °C | ||
| 6.0000 mm | ||
| 42 mm | ||
| 31.8 x 42 mm mm | ||
| 13.8 mm | ||
| 31.8 mm | ||
| 282106 | ||
| Sealed Power Housing | ||
| 24 Vdc | ||
| 20 to 16, 20 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538908180 |
| Schedule B: | 8538907020 |
Factory Lead Time:
