2015698-2

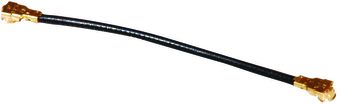

Cable Assembly Coaxial 0.1m UMCC to UMCC PL-PL T/R
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Cables & Wires, Cable Assemblies, Coaxial Cables
Avnet Manufacturer Part #: 2015698-2
Secondary Manufacturer Part#: 2015698-2
-
RoHS 10 Compliant -
Tariff Charges
The UMCC series is an ultra low profile coax interconnect solution that meets the ever growing demand for miniaturization in next generation wireless applications. UMCC cable assemblies and connectors are available as double-ended jumpers and inter-series assemblies, and PCB jack receptacles for board mount applications.
- Standard Double Ended Cable Assembly
- Ultra low profile (2.0mm maximum mated height)
- Easy snap on/off mating
- Small footprint on PCB (3mm x 3mm)
- Excellent performance to 6 GHz
- Surface mount and reflow solderable
- 360 degree mated rotation
- Cable Dia: 1.13 mm
- Cable Length: 50 mm
- UMCC Cable Connector Type: III
- Mates with PCB Receptacle: Style A
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Brass|Phosphor Bronze | ||
| Gold | ||
| Plug-Plug | ||
| -40 to 90 °C |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8544200000 |
| Schedule B: | 8544200000 |
Factory Lead Time:
