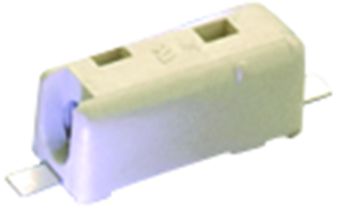

2008563-1
Conn Wire to Board RCP 1 POS Solder RA SMD
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, PC Board Connectors, Wire to Board Connectors
Avnet Manufacturer Part #: 2008563-1
Secondary Manufacturer Part#: 2008563-1
-
RoHS 10 Compliant -
Tariff Charges
The low profile SMT and Thru-Hole Poke-In Wire connectors are designed for lighting applications.
- Connectors are available in 1 position
- Standard and Low Insertion Force connectors available
- Accepts 18, 20 and 22 AWG solid wire;
- 18 and 20 AWG pre-bond stranded wire;
- 18 AWG stranded wire
- Connectors are available in both black and white colors for polarity
- Gel-filled versions are available for indoor moisture and outdoor application
- Low profile design
- Rounded corners to minimize shadowing
- Flat top surface allows for vacuum pickup
- High temperature material for reflow processing
- Redundant SMT pads prevent peeling
- Side by side stackable with pads on 4mm centers
- Tape and reel packaging for high speed SMT and Thru Hole processing
- RoHS compliant
- Cost effective alternative to hand soldering wires to printed circuit boards
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Thermoplastic | ||
| Right Angle | ||
| Copper Alloy | ||
| Tin | ||
| Receptacle | ||
| White | ||
| 260 | ||
| Surface Mount | ||
| -40 to 105 °C | ||
| 10.5 mm | ||
| 3.95 x 10.5 x 3.9 mm | ||
| 3.9 mm | ||
| 3.95 mm | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | PROJECTED FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Factory Lead Time:
