2007435-1
HDMI Connector, 19 Contacts, Jack, PCB Mount, Through Hole Right Angle, Gold Plated Contacts

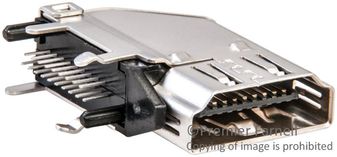

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Audio & Video Connectors, HDMI Connectors
Avnet Manufacturer Part #: 2007435-1
Secondary Manufacturer Part#: 2007435-1
-
RoHS 10 Compliant -
Tariff Charges
The 2007435-1 is a 19-posistion HDMI Receptacle with gold-plated contacts, through hole PCB mount and flag PCB orientation. High-definition multimedia interface technology is an interface for consumer electronics products such as digital television, set-top boxes and DVD players. HDMI technology supports standard, enhanced or high-definition video plus multi-channel audio on a single cable. 19 positions and 5Gbps of bandwidth to support video and multi-channel audio in a single cable. Easy-to-use friction lock design provides secure electrical contact and smooth cable insertion/extraction.
- Simple, user-friendly connector
- Replaces existing audio and digital cabling in one assembly
- Easy-to-use friction lock design
- Full shielding for ESD protection and lead-free process available
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Thermoplastic | ||
| Right Angle | ||
| Copper Alloy | ||
| Gold | ||
| Receptacle | ||
| Tin | ||
| Through Hole | ||
| 19 | ||
| 1 | ||
| -20 to 85 °C | ||
| 1.1500 mm | ||
| 23.1 mm | ||
| 7.89 x 23.1 x 16.4 mm mm | ||
| 16.4 mm | ||
| 7.89 mm | ||
| 2007435 | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
