20009605-04

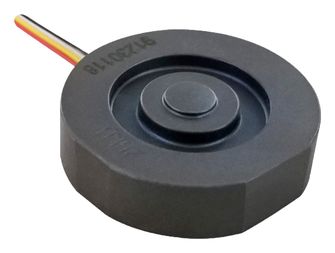

FX292X-100A-0010-L is a FX29 compact compression load cell. FX29 is a compact compression load cell offers exceptional price-to-performance in a robust sensor package. Optimized for embedded force sensing applications from disposable medical devices to durable appliances and exercise equipment. The FX292X-100A-0010-L allows design flexibility with mV output. Microfused technology provides excellent span and zero stability, outstanding cycle life, superior resolution, high over-range capabilities, and an unamplified span sensitivity of 20mV/V. The FX29 utilizes a two-piece construction of stainless steel materials. The combination of a metal injection moulded flexure and micro miniaturized MEMS strain gauges allows flexibility of force range options for a lower cost sensor. Typical applications include medical infusion pumps, analogue & digital scales, payload weighing, power tools, robotics, surgical & dental tools, battery powered devices and manufacturing equipment.

• 20mV/V output signal
• 100mm cable length
• 4-wire ribbon cable without connector
• 10lbf load
• Low power consumption
• Rugged microfused sensing element
