1825002-5
DIP / SIP Switch, 4 Circuits, Slide, Through Hole, SPST, 24 V, 100 mA

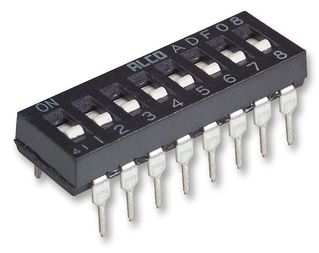

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Electromechanical, Switches, SIP/DIP Switches
Avnet Manufacturer Part #: 1825002-5
Secondary Manufacturer Part#: 1825002-5
-
RoHS 10 Compliant -
Tariff Charges
The 1825002-5 is a 4-position single-pole single-throw (SPST) sealed vertical mount DIP Switch. The ADF series switch comes with black polyphenylene sulphide (PPS), gold-flash contact mating area plating and gold over nickel plated solder with copper alloy contact base.
- Flush actuator
- Auto-insertable
- L Style termination
- High pressure contact system
- UL94V-0 Flammability rating
- Processable without tape seal
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Flush Slide | ||
| PPS (Polyphenylene Sulfide) | ||
| Copper Alloy | ||
| Gold Flash Over Nickel | ||
| Gold Flash Over Nickel | ||
| 260 °C | ||
| 100 mA | ||
| 5 V | ||
| 1000 Cycles | ||
| Through Hole | ||
| 4 | ||
| -30 to 85 to 85 °C | ||
| 8 | ||
| SPST | ||
| 12.14 x 7.5 x 3.5 mm | ||
| ADF | ||
| DIP | ||
| OFF-ON | ||
| PC Pin |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536509050 |
| Schedule B: | 8536509050 |
