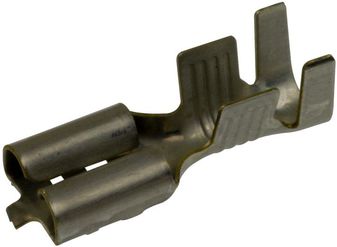

180351-2
Quick Disconnect Terminal 12 to 10AWG 5.14mm² 19.04mm 7.6mm Pre-Tin
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Terminals, Quick Disconnect Terminals
Avnet Manufacturer Part #: 180351-2
Secondary Manufacturer Part#: 180351-2
-
RoHS 10 Compliant -
Tariff Charges
The 180351-2 is a Disconnect Terminal with pre-tin-plated brass contacts. 4 to 6mm² wire cross-section, straight orientation, female quick disconnect type and 12 to 10AWG wire size. This disconnect terminal is suitable for wires/cables.
- Locking lance mating retention type
- Single connection capacity
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Brass | ||
| 4 to 6 mm² | ||
| Tin | ||
| -40 to 110 °C | ||
| Pre-Tin | ||
| 7.6 mm | ||
| 19.04 x 7.6 x 6.9 mm | ||
| 19.04 mm | ||
| 180351 | ||
| 5.14 mm² | ||
| Crimp | ||
| 12 to 10, 12 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536904000 |
Ships
in 1 bus. day
