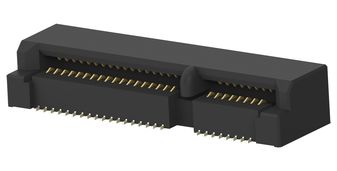

1775838-2
Card Edge Connector, Mini PCIe, Dual Side, 1 mm, 52 Contacts, Surface Mount, Straight
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Card Edge Connectors
Avnet Manufacturer Part #: 1775838-2
Secondary Manufacturer Part#: 1775838-2
-
RoHS 10 Compliant -
Tariff Charges
This express mini card and display mini card sockets address interconnect requirements for expansion cards added on boards across server, desktop, consumer devices and notebook platforms. This product portfolio consists of right angle, surface mount sockets with S2 contacts (express mini card) or 76 contacts (display mini card). Latches are available for selected heights. The design meets the PCI-SIG industry standard for high speed data transmission
- Sockets available in heights from 4mm to 10.6mm
- Capable of withstanding 50G mechanical shock testing
- Contact manufacturing method creates a contact with more stable normal force than other methods
- Compliant with PCISIG standard
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Mini PCI Express Card | ||
| 1 mm | ||
| LCP (Liquid Crystal Polymer) | ||
| Right Angle | ||
| Phosphor Bronze | ||
| Gold Flash over Nickel | ||
| Solder | ||
| Surface Mount | ||
| 52 | ||
| 1775838 | ||
| Solder | ||
| 50 Vac |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Ships
in 1 bus. day
