173631-1
Contact Socket Crimp Straight Cable Mount
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 173631-1
Secondary Manufacturer Part#: 11H9122
-
RoHS 10 Compliant -
Tariff Charges

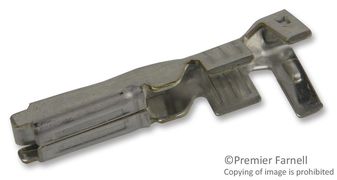

The 173631-1 is a crimp Receptacle Contact with brass body, tin-plating. 20 to 16AWG wire. This crimp receptacle contact is suitable for use with brass body, MULTILOCK connectors.
- 10A Typical current rating
- -30 to 105°C Operating temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| 0.5 to 1.25 mm² | ||
| Automotive Connector | ||
| Brass | ||
| Pre-Tin | ||
| Power | ||
| Socket | ||
| Pre-Tin | ||
| 3 mOhm | ||
| 10 A | ||
| Cable Mount | ||
| -30 to 105 °C | ||
| 16 x 5 x 4.7 mm | ||
| 173631 | ||
| No | ||
| Crimp | ||
| 20 to 16, 20 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538908140 |
| Schedule B: | 8538907040 |
Factory Lead Time:
