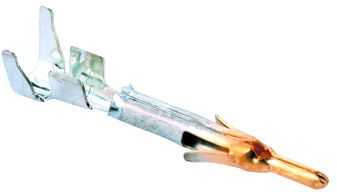

171638-1
Contact, Mini Universal MATE-N-LOK Series, Pin, Crimp, 16 AWG, Tin Plated Contacts
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 171638-1
Secondary Manufacturer Part#: 52F2283
-
RoHS 10 Compliant -
Tariff Charges
The 171638-1 is a crimp Pin Contact with brass body, tin-plating. 20 to 16AWG wire. This crimp pin contact is suitable for use with brass body, AMP mini-Universal MATE-N-LOK series housings.
- 600VAC Operating voltage
- 7A Contact current rating
- 1mm Contact diameter
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| Brass | ||
| Pre-Tin | ||
| Pin | ||
| Tin | ||
| Cable Mount | ||
| -20 to 105 °C | ||
| 18 x 4.3 x 4.95 mm | ||
| No | ||
| Crimp | ||
| 20 to 16, 20 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538903000 |
| Schedule B: | 8538907040 |
Factory Lead Time:
