1658642-1

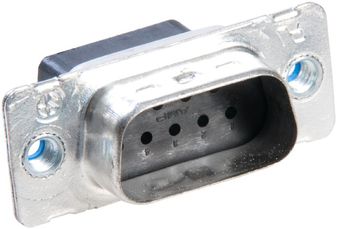

D Sub Connector Housing, 9 Ways, D Sub, 1, AMPLIMITE HDP-20, Plug, Metal Body
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, D-Shaped Connectors, High Density D-Sub Connectors
Avnet Manufacturer Part #: 1658642-1
Secondary Manufacturer Part#: 1658642-1
-
RoHS 10 Compliant -
Tariff Charges
The 1658642-1 is a 9-way D-sub Plug with tin-plated steel shell. It comes with a thermoplastic insert, mating connector lock and grounding indents. Plug accepts size 20 DF pin contacts.
- UL94V-0 Flammability rating
- 4-40 UNC clinch nut
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Thermoplastic | ||
| Straight | ||
| Plug | ||
| Black | ||
| Cable Mount | ||
| 9 | ||
| 2 | ||
| -55 to 105 °C | ||
| 17.7 mm | ||
| 30.81 x 17.7 x 12.54 mm mm | ||
| 12.54 mm | ||
| 30.81 mm | ||
| 1658642 | ||
| Crimp |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538908180 |
| Schedule B: | 8538907080 |
Ships
in 1 bus. day
