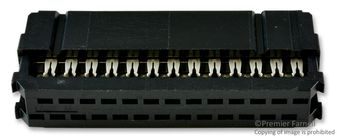

1658623-6

Novo receptacles offer a dual contact interface with all normal force created by metal-to-metal contact. This provides a higher degree of contact reliability.

Novo receptacles feature two rows of contacts on .100 x .100 [2.54 x 2.54] centerlines in select sizes from 10 to 64 positions. Contacts mate with .0252 [0.642] or round posts with .245 [6.22] max. and .175 [4.45] min. lengths. The Novo tuning fork contact offers a military-approved design, and at a lower cost.

Contacts are made of phosphor bronze and are available in a choice of duplex .000015 [0.00038] or .000030 [0.00076] gold in the mating area, and .000100 [0.00254] tin in the termination area, with the entire contact underplated with .000050 [0.00127] nickel.

Housings are made of UL 94V-0 thermoplastic material and feature military, military and center, and dual bar polarization.

Optional accessories include a snap-on strain relief and pull loops.

Novo receptacles can be terminated to .050 [1.27] pitch ribbon cable by a wide variety of one-step application tooling.

• .100 x .100 [2.54 x 2.54] mating grid for .050 [1.27] pitch ribbon cable
• Tuning fork contact offers a military approved design, at an economical cost
• Polarization options include military, center and military, and dual bar
• Choice of duplex gold plating on contact mating area
• Insulation displacement contacts for fast, economical mass terminations
• Contact design provides uniform latching of contacts and housing with connector cover
• Housing, cover and strain relief made of UL 94V-0 rated thermoplastic material
• Selected 10 thru 64-position configurations available
• Accepts wire size range 28-26 AWG [0.08-0.15 mm2], solid or stranded
• Snap-on strain relief and choice of pull loops available
• One-step termination with Novo tooling
