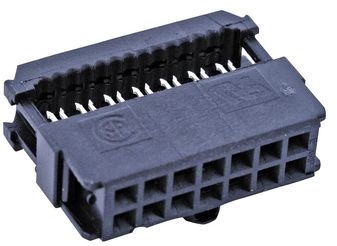

1658622-1
IDC Connector, IDC Receptacle, Female, 2.54 mm, 2 Row, 10 Contacts, Cable Mount
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, PC Board Connectors, Wire to Board Connectors
Avnet Manufacturer Part #: 1658622-1
Secondary Manufacturer Part#: 1658622-1
-
RoHS 10 Compliant -
Tariff Charges
The 1658622-1 is a ribbon Cable Connector with vertical PCB mounting orientation, polarization mating alignment type.
- 250VAC Operating Voltage
- Phosphor Bronze Contact Base
- 5000mΩ Insulation Resistance
- Pin Header Type
- Tuning Fork Contact Design
- Socket Contact Type
- Black Housing Colour
- Thermoplastic Housing Material
- -65 to +105°C Operating Temperature Range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Thermoplastic | ||
| Right Angle | ||
| Phosphor Bronze | ||
| Gold | ||
| Receptacle | ||
| Cable Mount | ||
| 2.54 mm | ||
| IDT |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538906000 |
| Schedule B: | 8538907020 |
Factory Lead Time:
