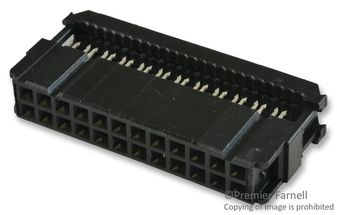

1658620-5

Novo receptacles offer a dual contact interface with all normal force created by metal-to-metal contact. This provides a higher degree of contact reliability.

Housings are made of UL 94V-0 thermoplastic material and feature military, military and center, and dual bar polarization.

• Novo Receptacles - 20 Position
• Military Polarized 0.1 x 0.1 [2.54 x 2.54] Centers
• Tuning fork contact offers a military approved design, at an economical cost
• Polarization options include military, center and military, and dual bar
• Choice of duplex gold plating on contact mating area
• Insulation displacement contacts for fast, economical mass terminations
• Contact design provides uniform latching of contacts and housing with connector cover
• Housing, cover and strain relief made of UL 94V-0 rated thermoplastic material
• Snap-on strain relief and choice of pull loops available
• One-step termination with Novo tooling
• Recognized under the Component Program of the Underwriters Laboratories, Inc. UL File No. E28476
• Certified by the Canadian Standards Association, File No. LR 7189
