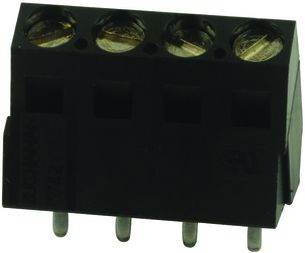

1546074-4
Conn Terminal Block F 4 POS 5.08mm Solder Thru-Hole 17.5A/Contact
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Terminal Block Connectors, PC Board Terminal Blocks
Avnet Manufacturer Part #: 1546074-4
Secondary Manufacturer Part#: 1546074-4
-
RoHS 10 Compliant -
Tariff Charges
Terminal Block connectors feature the special rising cage clamp design. The modular design of Terminal Block connectors consists of one-piece board mount terminal blocks and plug connectors with mating straight and right-angle shrouded headers.
Terminal Block connectors are interchangeable with most existing products and PC board footprint is fully compatible with existing Industry Standards.
- Board Mount with Interlock
- 5.08 mm Centerline
- 35° Angled Wire Entry
- 8 Position
- Certified by the VDE Testing and Certification Institute VDE File No. 6917 (Two-Piece Version) VDE File No. 6920 (One-Piece Version)
- Recognized under the Component Program of Underwriters Laboratories Inc., File No. E60677
- Certified by Canadian Standards Association, File No. 703157 n Produced under Quality Management System certified to ISO 9001
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Polyamide 66 | ||
| Brass | ||
| Tin | ||
| Receptacle | ||
| Black | ||
| 265 | ||
| Through Hole | ||
| -40 to 105 °C | ||
| 5.0800 mm | ||
| 12.5 mm | ||
| 20.32 x 12.5 x 15 mm | ||
| 15 mm | ||
| 20.32 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
