1469921-1

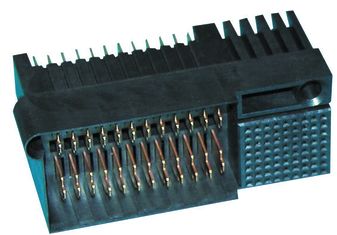

Conn Daughter Card M 24/72 POS Solder RA Thru-Hole
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, PC Board, Other PC Board Connectors
Avnet Manufacturer Part #: 1469921-1
Secondary Manufacturer Part#: 1469921-1
-
RoHS 10 Compliant -
Tariff Charges
The right-angle connector consists of 72 high density signal pins and 24 right angle UPM blades that feature 2 mating lengths for the mate first/break last ground sequencing.
- 72-position Right-Angle Plug, Solder Tail
- Designed to the PICMG MicroTCA.0 Standard
- 30 micro inches gold plating over nickel
- RoHS compliant
- 24 high current density power contacts, able to carry up to 14.5 Amps per contact when fully loaded
- Industry proven Universal Power Module (UPM) power contacts
- Hot-plug contact design controls arc during hot mate/unmate cycles
- 3 mating levels
Technical Attributes
Find Similar Parts
| Description | Value |
|---|
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Factory Lead Time:
