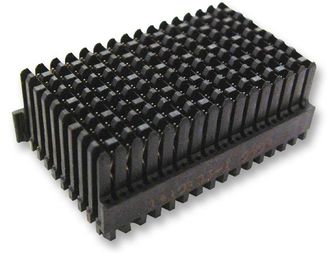

1410140-1
Connector, MULTIGIG RT, 144 Contacts, 1.8 mm, Receptacle, Press Fit, 16 Rows
-
RoHS 10 Compliant -
Tariff Charges
The 1410140-1 is a 144-position 9-row 16-column vertical Board-to-Board High Speed Connector with 1.27µm gold-plated phosphor bronze contacts and black LCP housing. This MULTIGIG RT product is a backplane interconnect family that offers levels of flexibility and customization. This printed circuit based, pinless, interconnect family is comprised of modular components, which can be used in a variety of combinations. Customizable impedance is matched with printed circuit wafer interface. Optimized footprints for signal integrity and ease of board design. It utilizes a 0.56mm diameter via for backplane connector for lower cost board fabrication.
- Switch slot board
- Centre guide location
- Polarization mating alignment type
- 10Gbps Performance
- Superior crosstalk performance
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| LCP (Liquid Crystal Polymer) | ||
| Straight | ||
| Phosphor Bronze | ||
| Gold Over Nickel | ||
| Receptacle | ||
| Black | ||
| Tin Over Nickel | ||
| 1 A | ||
| Through Hole | ||
| 144 | ||
| 9 | ||
| -55 to 105 °C | ||
| 1.8 mm | ||
| 18.6 mm | ||
| 29.41 x 18.6 x 10.5 mm | ||
| 10.5 mm | ||
| 29.41 mm | ||
| 1410140 | ||
| Press Fit | ||
| High Speed Backplane |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
