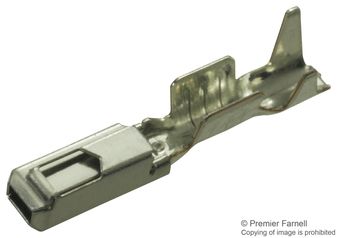

1241608-1
Rectangular Power Contact, Micro-Power, Tin Plated Contacts, Copper Nickel Silicon, Socket, Crimp
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 1241608-1
Secondary Manufacturer Part#: 1241608-1
-
RoHS 10 Compliant -
Tariff Charges
The 1241608-1 is a 18 to 15AWG Receptacle Crimp Contact made of copper-nickel-silicon with tin plated finish and gold over nickel plated contact area.
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| 0.75 to 1.5 mm² | ||
| Wire to Wire Housing | ||
| Copper-Nickel-Silicon | ||
| Tin | ||
| Power | ||
| Receptacle | ||
| Tin | ||
| 3 mOhm | ||
| 7.5 A | ||
| Cable Mount | ||
| -40 to 120 °C | ||
| 16.5 x 3.7 x 3.9 mm mm | ||
| 1241608 | ||
| No | ||
| Crimp | ||
| 18 to 15, 18 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538908140 |
| Schedule B: | 8538907020 |
Factory Lead Time:
