1241380-2
Automotive Connector Contact, MCP, Socket, Crimp, 18 AWG, 20 AWG, AMP MCP Series Connectors
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 1241380-2
Secondary Manufacturer Part#: 23AH0104
-
RoHS 10 Compliant -
Tariff Charges

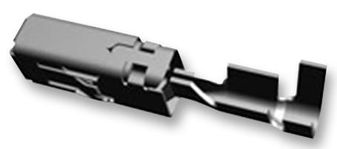

The 1241380-2 from TE Connectivity is an AMP MCP 1.5K flat type receptacle.
- 180° receptacle style
- Primary locking lance
- Copper wire, gold (Au) interface plating, tin (Sn) contact termination area plating material 
- F-crimp termination method
- Wire size of 0.5mm² to 1mm² [ 20AWG to 18AWG ]
- Wire insulation diameter is 1.4mm to 2.1mm (0.055inch to 0.083inch)
- Typical current rating is 12A
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| Copper-Nickel-Silicon | ||
| Gold | ||
| Receptacle | ||
| Cable Mount | ||
| 20.1 x 4.3 x 4.8 mm | ||
| No | ||
| Crimp | ||
| 20 to 17, 20 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536904000 |
Factory Lead Time:
