120591-1

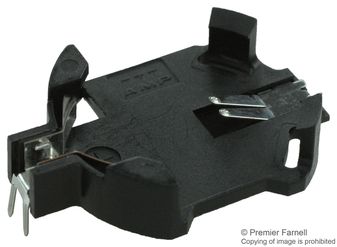

CR2032 Button Cell Battery Holder, Horizontal PCB Mount
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Batteries, Battery Accessories, Battery Holders
Avnet Manufacturer Part #: 120591-1
Secondary Manufacturer Part#: 120591-1
-
RoHS 10 Compliant -
Tariff Charges
- Total interface solution
- Current capacity - 7 Amps/ single contact at 30°C T-Rise
- Choice of right-angle or vertical mount headers with left, right or keyless polarization
- 5.0 mm pitch headers available for 7.2, 10.8, and 12.0 volt rechargeable batteries
- Receptacle connectors available with solder tails or weld tabs
- Consumer friendly mating/unmating of battery
- Produced under a Quality Management System certified to ISO 9001
- Blade Contacts for high durability
- Used Industry-wide for rechargeable battery I/O - in laptop computers
- Offered in a variety of key arrangements - for different voltage batteries
- 2.0 mm, 2.5 mm, 3.0 mm and 5.0 mm contact pitch batteries available
- MDI systems designed to mate at any angle
- Up to 7 Amps per contact
- Up to 2500 cycle durability
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| PBT (Polybutylene Terephthalate) | ||
| Glass Filled PBT (Polybutylene Terephthalate) | ||
| Right Angle | ||
| Coin Cell - 20mm | ||
| Phosphor Bronze | ||
| Pre-Tin | ||
| Receptacle | ||
| 240 | ||
| Through Hole | ||
| 1 | ||
| -40 to 85 to 85 °C | ||
| 2.5400 mm | ||
| 19.05 mm | ||
| 27.3 x 19.05 x 6.32 mm | ||
| 6.32 mm | ||
| 27.3 mm | ||
| 120591 | ||
| Solder | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536698000 |
| Schedule B: | 8536695050 |
Factory Lead Time:
