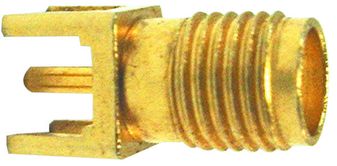

1053354-1
RF / Coaxial Connector, SMA Coaxial, Straight Jack, Through Hole Vertical, 50 ohm, Beryllium Copper
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
RF & Wireless, RF / Coaxial Connectors & Accessories, RF / Coaxial Connectors
Avnet Manufacturer Part #: 1053354-1
Secondary Manufacturer Part#: 1053354-1
-
RoHS 10 Compliant -
Tariff Charges
The 1053354-1 is a SMA PC board mount Vertical Jack with gold-plated beryllium copper contacts, gold-plated stainless steel straight body and PTFE. The SMA connector is designed for performance to 18GHz to satisfy the growing demand for SMA connectors in the wireless communications industry. The SMA product line offers stainless steel bodies, as well as nonferrous metals. The SMA interface is fully compatible with Mil-C-39012.
- Vertical SMA Jack
- PC Board Mount
- Performance to 12.4 GHz and beyond
- Uses industry standard crimp tools and processes
- Available with corrosion resistant, non-magnetic White Bronze plating
- Meets all performance requirements for MIL-C-39012
- Connector Length: 13.5mm
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Solder | ||
| Straight | ||
| Through Hole | ||
| Beryllium Copper | ||
| Gold |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | PROJECTED FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694010 |
