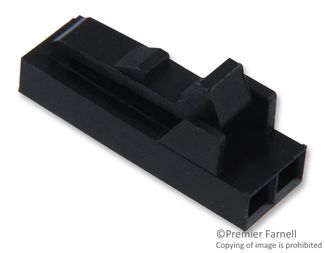

104257-1
Connector Housing, MTE, Receptacle, 2 Ways, 2.54 mm, MTE Contacts
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 104257-1
Secondary Manufacturer Part#: 104257-1
-
RoHS 10 Compliant -
Tariff Charges
The 104257-1 is a 2-position black MTE Receptacle Housing made of thermoplastic material. It has crimp, insulation displacement crimp termination and use with crimp snap-In contacts.
- 2.54mm Row-to-row spacing
- 5000MO Insulation resistance
- 267V Operating voltage
- UL94V-0 Flammability
- -65 to 105°C Operating temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Thermoplastic | ||
| Straight | ||
| Receptacle | ||
| Black | ||
| -65 to 105 °C | ||
| 2.5400 mm | ||
| 15.24 mm | ||
| 5.02 x 15.24 mm | ||
| 5.02 mm | ||
| 30 to 22, 30 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538906000 |
| Schedule B: | 8538907020 |
Factory Lead Time:
