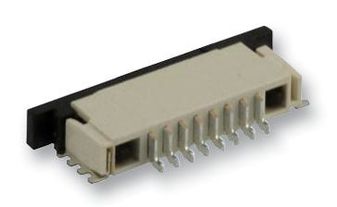

1-84953-0
FFC / FPC Board Connector, 1 mm, 10 Contacts, Plug, Surface Mount Straight, Top
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, FFC-FPC Connectors
Avnet Manufacturer Part #: 1-84953-0
Secondary Manufacturer Part#: 1-84953-0
-
RoHS 10 Compliant -
Tariff Charges
The 1-84953-0 is a 10-position 1-row ZIF right angle shrouded Flex-to-Board FPC Connector with 2µm tin-plated phosphor bronze single beam contacts and UL94V-O glass reinforced polyester (LCP) housing. The FPC series receptacle with stuffer actuator and surface-mount termination method to PC board.
- Inline tail orientation
- With PCB mount retention and mating alignment 
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| LCP (Liquid Crystal Polymer) | ||
| Right Angle | ||
| Socket | ||
| Phosphor Bronze | ||
| Tin | ||
| Natural | ||
| 260 | ||
| Surface Mount | ||
| 1.0000 mm | ||
| 2.56 mm | ||
| 17.92 x 2.56 x 5.4 mm | ||
| 5.4 mm | ||
| 17.92 mm | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
